FL 3.2 / 3.8 Quadruplex HFFS Rollstock Machine for Flat Sachets x4 Speed
Request More Information ›Development in packaging technology is our focus. If you are looking for high production efficiency, our Quadruplex machine can do it.
THE MOST FLEXIBLE, HIGH PRODUCTION MACHINERY LINE
The quadruplex machinery series with robust and reliable mechanical design offers high-speed production and efficiency.
Fast format changeover, automatic film splicing for non-stop production, easy operation, low maintenance, high filling accuracy are some of the main features of our quadruplex machinery line.
Thanks to its flexibility, these machines can cover a wide range of formats sizes, offering single and twin 3-4 sealed flat sachets and more.
Low cost maintenance and high production with proven efficiency, make this series the best option for small formats sachets sizes and high volume production, machines are built in stainless steel under the latest technology in compliance with the most demanding international regulations, and comes with a 3 year-warranty as a sign of commitment for our customers.

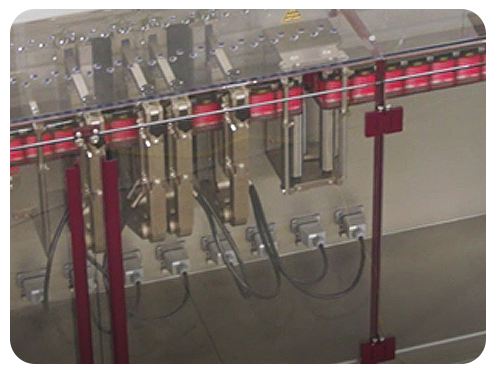

INDEPENDENT VERTICAL SEALING GROUPS WITH FILM COMPENSATOR ROLLERS
- Motorized vertical sealing bars
- Film compensator rollers, with automatic control centers sachet printing with respect to the sealing and sachet cutting

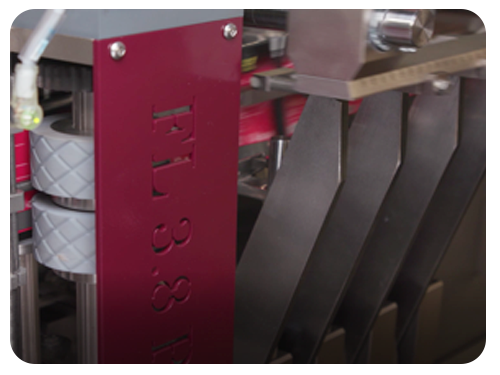

FILM FEED PULLING SYSTEM
- Servo motorized film feed unit
- Pneumatic control of film tension
- Automatic film height adjustment with machine in operation
- Automatic self-adjustment
- Highly accurate system with auto-correction every cycle

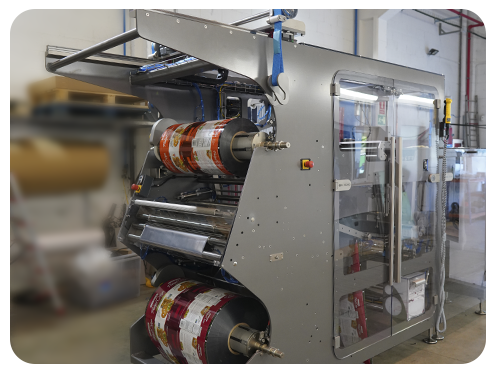

AUTOMATIC FILM SPLICING SYSTEM
Film reel splicing system:
- Film reel splicing system:
- Integrated to reel unwinder
- Two pneumatical reel shafts
- Rejection system for spliced pouches
- End and low reel level sensors
- Motorised reel elevator with remote control
EASY AND FAST CHANGE OVER
- Motorized forming triangle
- Motorized bottom and vertical sealing bars
- Servo-motorized film feed system and cutting group
- HMI recipes screen
MACHINE FRAME IN STAINLESS STEEL AISI 304
- Sanitary design, frontal plate without housings and without exterior orifices, in compliance with pharma & food requirements
- Robust and stable, with vibration free while running
- Frontal plate 20 mm thick
Solid Filling Systems
For powders, granulates & pieces:
- Auger filler, Volumetric cup filler lineal and rotary, designed and manufactured by FLtècnics
- Multi-head & lineal weighers
- Counting filling systems
- Customized fillers for special applications
Liquid Filling Systems
For liquid and pasty products:
- Mass and magnetic flow meters: Endress+Hausser, Bopp & Reuther
- Piston fillers with pneumatic or servomotor operation
- Customized fillers for special applications
- Innovative system of filling correction in real time, standard on all our flow-metering dosing system
Additional Products
Our Machinery line models FL 1.4 B & FL 1.7 B are designed specifically for customers looking for production machines that are compact, robust and fast.
Intended for small pouch sizes, this is a walking beam style HFFS machine that specializes in spouts using the same spout applicator.
Walking beam style HFFS machine is the smartest, most versatile packaging line.
Carousel style HFFS is specially designed for large dimension and great volume pouches.
